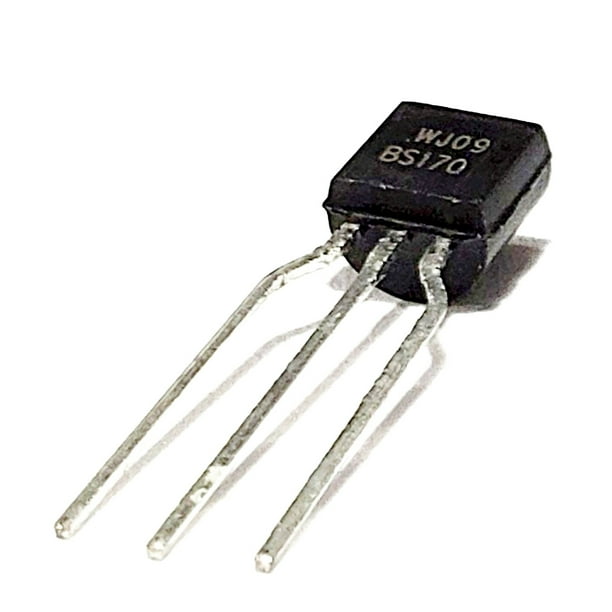

Type Designator: BS170
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.83 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 0.5 A
Maximum Junction Temperature (Tj): 150 °C
Maximum Drain-Source On-State Resistance (Rds): 5 Ohm
Package: TO92
BS170 Transistor Equivalent Substitute - MOSFET Cross-Reference Search
BS170 Datasheet (PDF)
0.1. bs170rev1x.pdf Size:77K _motorola
MOTOROLAOrder this documentSEMICONDUCTOR TECHNICAL DATAby BS170/DTMOS FET SwitchingN Channel EnhancementBS1701 DRAIN2GATE3 SOURCEMAXIMUM RATINGS12Rating Symbol Value
0.2. bs170 cnv 2.pdf Size:49K _philips
DISCRETE SEMICONDUCTORSDATA SHEETBS170N-channel vertical D-MOStransistorApril 1995Product specificationFile under Discrete Semiconductors, SC13bPhilips Semiconductors Product specificationN-channel vertical D-MOS transistor BS170DESCRIPTION QUICK REFERENCE DATAN-channel enhancement modeDrain-source voltage VDS max. 60 Vvertical D-MOS transistor in TO-92Gate-source v
0.3. bs170.pdf Size:652K _fairchild_semi
April 1995 BS170 / MMBF170N-Channel Enhancement Mode Field Effect Transistor General Description FeaturesThese N-Channel enhancement mode field effect High density cell design for low RDS(ON).transistors are produced using Fairchild's proprietary, highVoltage controlled small signal switch.cell density, DMOS technology. These products have beendesigned to minimize on-state resi
0.4. bs170 d26z bs170 d27z bs170 d74z bs170 d75z bs170 l34z bs170 mmbf170.pdf Size:1298K _fairchild_semi
March 2010BS170 / MMBF170N-Channel Enhancement Mode Field Effect Transistor General Description FeaturesThese N-Channel enhancement mode field effect High density cell design for low RDS(ON).transistors are produced using Fairchild's proprietary, high Voltage controlled small signal switch.cell density, DMOS technology. These products have beendesigned to minimize on-s
0.5. 2n7000kl bs170kl.pdf Size:93K _vishay
2N7000KL/BS170KLVishay SiliconixN-Channel 60-V (D-S) MOSFETFEATURESPRODUCT SUMMARY TrenchFET Power MOSFETVDS (V) rDS(on) () VGS(th) (V) ID (A)Pb-free ESD Protected: 2000 VAvailable2 at VGS = 10 V0.4760 1.0 to 2.5 RoHS*APPLICATIONSCOMPLIANT4 at VGS = 4.5 V0.33 Direct Logic-Level Interface: TTL/CMOS Solid-State Relays Drivers: Relays,
0.6. 2n7000 2n7002 vq1000j-p bs170.pdf Size:58K _vishay
2N7000/2N7002, VQ1000J/P, BS170Vishay SiliconixN-Channel 60-V (D-S) MOSFETPRODUCT SUMMARYPart Number V(BR)DSS Min (V) rDS(on) Max (W) VGS(th) (V) ID (A)5 @ VGS = 10 V 0.8 to 3 0.22N70002N7002 7.5 @ VGS = 10 V 1 to 2.5 0.11560VQ1000J 5.5 @ VGS = 10 V 0.8 to 2.5 0.225VQ1000P 5.5 @ VGS = 10 V 0.8 to 2.5 0.225BS170 5 @ VGS = 10 V 0.8 to 3 0.5FEATURES BENEFITS APPLICATIONSD
0.7. bs170g bs170rl1g bs170rlra bs170rlrag bs170rlrmg bs170rlrp bs170rlrpg bs170zl1g.pdf Size:88K _onsemi
BS170GSmall Signal MOSFET500 mA, 60 VoltsN-Channel TO-92 (TO-226)Featureshttp://onsemi.com This is a Pb-Free Device*500 mA, 60 VoltsMAXIMUM RATINGSRDS(on) = 5.0 WRating Symbol Value UnitDrain -Source Voltage VDS 60 VdcN-ChannelGate-Source VoltageD- Continuous VGS 20 Vdc- Non-repetitive (tp 50 ms) VGSM 40 VpkDrain Current (Note) ID 0.5 AdcGTotal
0.8. bs170g.pdf Size:92K _onsemi
BS170GSmall Signal MOSFET500 mA, 60 VoltsN-Channel TO-92 (TO-226)Featureshttp://onsemi.com This is a Pb-Free Device*500 mA, 60 VoltsMAXIMUM RATINGSRDS(on) = 5.0 WRating Symbol Value UnitDrain -Source Voltage VDS 60 VdcN-ChannelGate-Source VoltageD- Continuous VGS 20 Vdc- Non-repetitive (tp 50 ms) VGSM 40 VpkDrain Current (Note) ID 0.5 AdcGTotal
0.9. bs170p.pdf Size:15K _no
N-CHANNEL ENHANCEMENTBS170PMODE VERTICAL DMOS FETISSUE 2 SEPT 93FEATURES* 60 Volt VDS* RDS(on)=5D G SREFER TO ZVN3306A FOR GRAPHSE-LineTO92 CompatibleABSOLUTE MAXIMUM RATINGS.PARAMETER SYMBOL VALUE UNITDrain-Source Voltage VDS 60 VContinuous Drain Current at Tamb =25C ID 270 mAPulsed Drain Current IDM 3AGate-Source Voltage VGS 20 VPower Dissipati
0.10. bs170f.pdf Size:67K _no
ST3-ANLNACMNO2NCHNEEHNEETB10S7FM EETADOFTODVRILMSECIU3JNAY96SSE-AUR19FAUEETRS*6VlVS0otDS*RSN=5D(O)DGPRMRI DTIVATAKGEAN LMST3O2ASLTMX AIBOUE AIU NSMMRTG.PRMTR SMO VLE UIAAEE YBL AU NTDa-or Vlg VS 6 Vrn eoae 0iSuc tDCnnosrnurttab2 I 05 motuu Da CrnaTm=5 . Ai i e C 1DPldriCrn I 3 Aue Da es nurtDMGtS
0.11. hbs170.pdf Size:403K _shantou-huashan
Bs170 Mosfet Datasheet
Shantou Huashan Electronic Devices Co.,Ltd. HBS170 N-Channel Enhancement Mode Field Effect Transistor General Description These products have been designed to minimize on-state resistance TO-92 While provide rugged, reliable, and fast switching performance. They can be used in most applications requiring up to 500mA DC. These products are particularly suited for low voltage,
0.12. bs170fta bs170ftc.pdf Size:17K _zetex
SOT23 N-CHANNEL ENHANCEMENTBS170FMODE VERTICAL DMOS FETISSUE 3 - JANUARY 1996FEATURES* 60Volt VDSS* RDS(ON) = 5DGPARTMARKING DETAIL MVSOT23ABSOLUTE MAXIMUM RATINGS.PARAMETER SYMBOL VALUE UNITDrain-Source Voltage VDS 60 VContinuous Drain Current at Tamb=25C ID 0.15 mAPulsed Drain Current IDM 3AGate Source Voltage VGS 20 VPower Dissipation at Tamb=2
0.13. bs170pstoa bs170pstob bs170pstz.pdf Size:15K _zetex
N-CHANNEL ENHANCEMENTBS170PMODE VERTICAL DMOS FETISSUE 2 SEPT 93FEATURES* 60 Volt VDS* RDS(on)=5D G SREFER TO ZVN3306A FOR GRAPHSE-LineTO92 CompatibleABSOLUTE MAXIMUM RATINGS.PARAMETER SYMBOL VALUE UNITDrain-Source Voltage VDS 60 VContinuous Drain Current at Tamb =25C ID 270 mAPulsed Drain Current IDM 3AGate-Source Voltage VGS 20 VPower Dissipati
Datasheet: BFR30, BFR31, BFR84, BFS28R, BFT46, BS107P, BS107PT, BS108, 2SK2996, BS170F, BS170P, BS250F, BS250P, BS270, BSN254, BSN254A, BSP92.
LIST
Last Update
MOSFET: CEZ3R04 | CEZ3P08 | CES2322 | CEB93A3 | CEF9060N | CEB6086 | CEN2321A | CEN2307A | CEM9288 | CEM6056L | CEM4052 | CEM2192 | CEU25N02 | CED25N02 | CEU20N02 | CED20N02
| Type | |
|---|---|
| Working principle | N-channel |
| Pin configuration | G = Gate, D = Drain, S = Source. The symbol doesn't always show the internal diode formed between the substrate and the source/drain/channel. |
| Electronic symbol | |
The 2N7000 and BS170 are two different N-channel, enhancement-modeMOSFETs used for low-power switching applications, with different lead arrangements and current ratings. They are sometimes listed together on the same datasheet with other variants 2N7002, VQ1000J, and VQ1000P.[1]
The 2N7000 is a widely available and popular part, often recommended as useful and common components to have around for hobbyist use.[2]The BS250P is 'a good p-channel analog of the 2N7000.'[3]
Packaged in a TO-92 enclosure, both the 2N7000 and BS170 are 60 V devices. The 2N7000 can switch 200 mA. The BS170 can switch 500 mA, with a maximum on-resistance of 5 Ω at 10 V Vgs.
The 2N7002 is another different part with different resistance, current rating and package. The 2N7002 is in a TO-236 package, also known as 'small outline transistor' SOT-23 surface-mount, which is the most commonly used three-lead surface-mount package.[4]
Applications[edit]
The 2N7000 has been referred to as a 'FETlington' and as an 'absolutely ideal hacker part.'[5] The word 'FETlington' is a reference to the Darlington-transistor-like saturation characteristic.
A typical use of these transistors is as a switch for moderate voltages and currents, including as drivers for small lamps, motors, and relays.[1] In switching circuits, these FETs can be used much like bipolar junction transistors, but have some advantages:
- high input impedance of the insulated gate means almost no gate current is required
- consequently no current-limiting resistor is required in the gate input
- MOSFETs, unlike PN junction devices (such as LEDs) can be paralleled because resistance increases with temperature, although the quality of this load balance is largely dependent on the internal chemistry of each individual MOSFET in the circuit
Bs170 Substitute
The main disadvantages of these FETs over bipolar transistors in switching are the following:
- susceptibility to cumulative damage from static discharge prior to installation
- circuits with external gate exposure require a protection gate resistor or other static discharge protection
- Non-zero ohmic response when driven to saturation, as compared to a constant junction voltage drop in a bipolar junction transistor
References[edit]
- ^ ab'2N7000/2N7002, VQ1000J/P, BS170'(PDF). Vishay Siliconix datasheet. Retrieved 28 March 2011.CS1 maint: discouraged parameter (link)
- ^H. Ward Silver (2005). Two-way radios & scanners for dummies. p. 237. ISBN0-7645-9582-2.
- ^Lucio Di Jasio; Tim Wilmshurst; Dogan Ibrahim (2007). PIC microcontrollers. Newnes. p. 520. ISBN0-7506-8615-4.
- ^Ray P. Prasad (1997). Surface mount technology: principles and practice (2nd ed.). Springer. p. 112. ISBN0-412-12921-3.
- ^Lancaster, Don (February 1986). 'Hardware hacker'. Modern Electronics. Richard Ross. 3 (2): 115. ISSN0748-9889.
External links[edit]
- Electric Field Sensor demonstrates extremely high gate impedance with a simple LED circuit
- Driving a single MOSFET Detailed description of usage of a similar MOSFET
- Datasheets
- 2N7002, 300mA, SOT-23 case, NXP Semiconductors
- NX7002AK, 300mA, SOT-23 case, NXP Semiconductors
- 2N7000, 200mA, TO-92 caseArchived 27 September 2007 at the Wayback Machine, On Semiconductor
- BS170, 500mA, TO-92 caseArchived 24 October 2020 at the Wayback Machine, On Semiconductor
